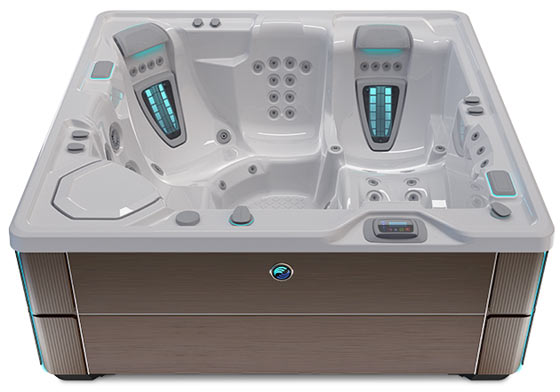

THE ARIA 5 PERSON HOT TUB

Power, convenience and style that fits just right

COMFORT FOR EVERYONE

Seating:    5 Adults
Lounge seat:    Yes

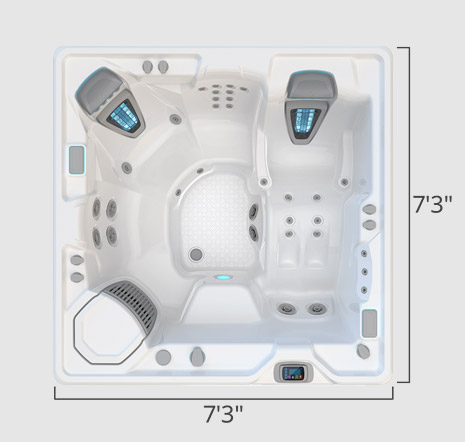

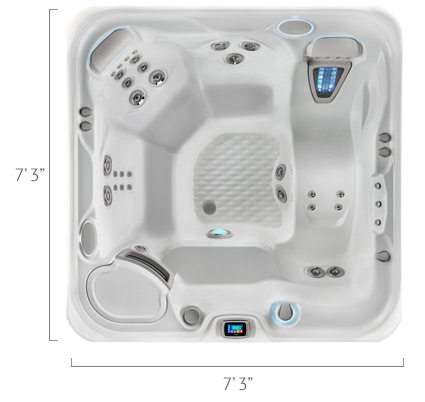

Size:    7’3″ x 7’3″ x 36″, 2.20m x 2.20m x .91m
Water Care:    FreshWater™ Salt System Ready
Pricing:    $$$$$

With sleek exterior styling and seating for five, the Aria is as eye-catching as it is comfortable. It packs a performance punch with a host of hydrotherapy features and a lounge that includes a Moto-Massage® DX jet to relax and restore you from top to bottom.

ARIA PRODUCT SPECS

Seating Capacity:

5 Adults

Dimensions:

7’3″ x 7’3″ x 36″
2.20m x 2.20m x .91m

Water Capacity:

325 gallons/1,225 liters

Weight:

695 lbs./315 kg dry
4,280 lbs./1,940 kg filled*

Jet Count:

35

Hot Tub Jets:

1 Moto-Massage® DX jet (2)
2 SoothingStream® jets
2 JetStream® jets
2 Rotary Hydromassage jets
5 Directional Hydromassage jets
4 HydroStream® jets
18 Directional Precision® jets

Lighting System:

Luminescence® multi-color four-zone

Cabinet/Siding:

Shell:

Water Features:

BellaFontana® with 3 illuminated arcs of water

Control System:

IQ 2020® with wireless remote control
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel

Heater:

No-Fault®, 4000w/230v

Jet Pump 1:

Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque

Jet Pump 2:

Wavemaster® 8200
Two-speed
2.0 HP Continuous Duty
4.0 HP Breakdown Torque

Circulation Pump:

SilentFlo 5000® for quiet continuous filtration

Energy Efficiency

Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law

Water Care System:

FreshWater™ Salt System Ready

Effective Filtration Area:

325 sq. ft., top loading Tri-X® filters; 100% no-bypass filtration

Vinyl Cover:

3.5″ to 2.5″ tapered
2 lb. density foam core with hinge seal

Vinyl Cover Colors:

Chocolate
Slate

Entertainment Systems (Optional):

Wireless Sound System

Cover Lifters (Optional):

CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®

Steps (Optional):

Everwood®
Polymer

*Includes water and 5 adults weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater

EXCLUSIVE WIRELESS REMOTE CONTROL

For added convenience all Highlife NXT models feature our unique wireless remote control with touchscreen technology.

The most advanced control panel available, it features a full color screen with large icons and intuitive menus that make it easy to adjust spa functions.

Remove the remote from the bartop charging dock and carry into the spa to adjust jets, lighting and even music from your favorite seat, then set the panel in the secondary bartop resting station while you relax.

ACCESSORIES

ENTERTAINMENT SYSTEMS

Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.

HOT TUB WATER CARE SYSTEMS

Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.

HOT TUB COVER LIFTERS

A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.

HOT SPRING SPA HOT TUB STEPS

Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
