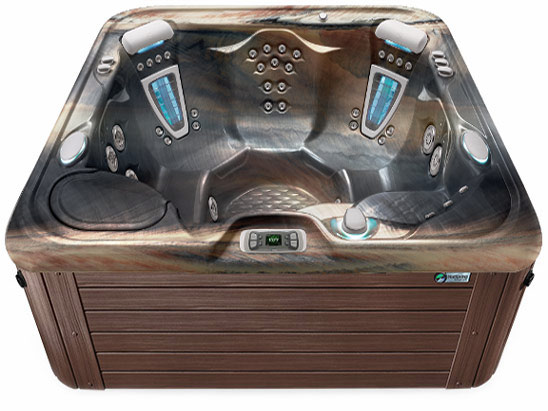

VANGUARD 6 PERSON HOT TUB

Innovation and luxury with room for the whole family

VANGUARD®

The family-friendly Vanguard offers six seats in a mid-sized space. It includes two Moto-Massage® DX bucket seats to soothe your neck, shoulders, back, hips, calves and feet.

$$$$
People: 6 Adults
Seating: Open
Size: 7’3” x 7’3” x 36” / 221 cm x 221 cm x 91 cm
Voltage: 280 V
Water Care: FreshWater™ Salt System Ready

CABINET COLORS

SHELL COLORS

CABINET AND SHELL COLOR COMBINATIONS

(All Color Combinations Available for All Highlife Models.)

CABINET COLOR:

Blackwood

SHELL COLORS:

Alpine White
Ice Gray
Platinum

CABINET COLOR:

Brushed Nickle

SHELL COLORS:

Alpine White
Ice Gray
Platinum

CABINET COLOR:

Charcoal

SHELL COLORS:

Alpine White
Ice Gray
Pebble
Platinum
Tuscan Sun

CABINET COLOR:

Java

SHELL COLORS:

Alpine White
Ice Gray
Ivory
Pebble
Tuscan Sun

CABINET COLOR:

Linen

SHELL COLORS:

Alpine White
Ivory
Pebble
Tuscan Sun

GRANDEE
Cabinet: Blackwood
Shell: Alpine White

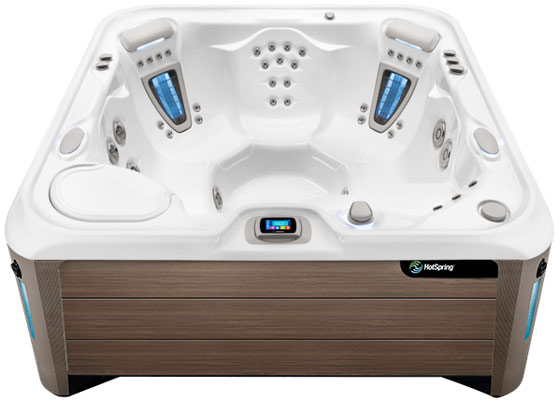

VANGUARD
Cabinet: Java
Shell: Pebble

SOVEREIGN
Cabinet: Charcoal
Shell: Alpine White

ENVOY
Cabinet: Brushed Nickel
Shell: Ice Gray

ARIA
Cabinet: Charcoal
Shell: Platinum

PRODIGY
Cabinet: Linen
Shell: Ivory

JETSETTER LX
Cabinet: Java
Shell: Tuscan Sun

JETSETTER
Cabinet: Brushed Nickel
Shell: Alpine White

VANGUARD MODEL SPECIFICATIONS

Pricing Guide:  $$$$


Total Seats: 6


Lounge Seat: No

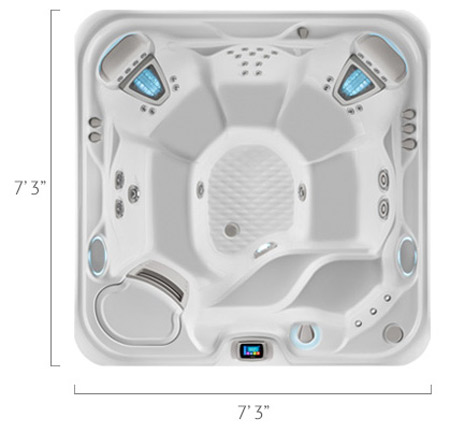

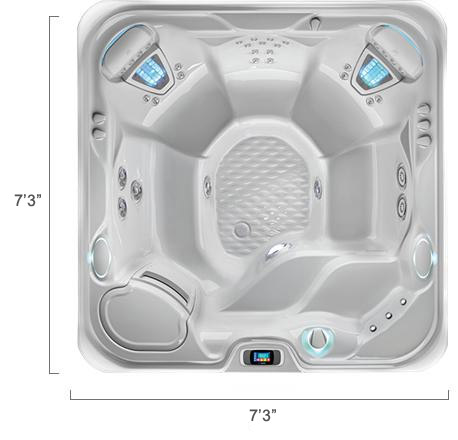

Dimensions: 7’3” x 7’3” x 36” / 221 cm x 221 cm x 91 cm


Water Care System: FreshWater® Salt System Ready


Voltage: 230 V


Water Capacity: 375 g / 1,425 L


Dry Weight: 710 lb./ 320 kg


Filled Weight*: 4,890 lb. / 2,225 kg

*Includes water and an adult weighing 175 lb. for every seat.

Jet Count: 42


Jet Types:
2 - Moto-Massage® DX
2 - SoothingStream®
2 - JetStream®
2 - Rotary Hydromassage
10 - HydroStream®
22 - Directional Precision®


Comfort Control®: Yes


SmartJet® System: Yes


Jet Pump 1:
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque


Jet Pump 2:
Wavemaster® 9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque


Jet Pump 3: Yes

100% No-Bypass Filtration: Yes


High-Flow Tri-X® Filters: Yes


Dual-Action Filtration: No


Polyester Filters with Free-Flow Core: No


Effective Filtration Area: 325 sq. ft.


Water Care System: FreshWater® Salt System Ready


Circulation Pump: SilentFlo 5000®


Floor Drain: Yes

Insulation: Multiple Layers of Urethane Foam


Proprietary Heater: Titanium No-Fault® 4,000 W / 230 V


Patented Pump Shroud: Yes


Custom-Fit Insulated Cover: 3.5” to 2.5” Tapered, 2-Pound Density Foam Core with Hinge Seal


Bottom Seal: Insulated Polymeric Base Pan


Energy Standards: Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas

Control System: IQ 2020® with Wireless Remote Touchscreen
230 V / 50 amp, 60 Hz Includes G.F.C.I. Protected Subpanel


Diagnostic/Ready Light: Yes

Cabinet Colors:
Java
Charcoal
Blackwood
Linen
Brushed Nickel


Shell Colors:
Alpine White
Ice Gray
Ivory
Platinum
Pebble
Tuscan Sun


Cover Colors:
Vinyl: Nutmeg or Graphite
Polyester: Black or Gray


Water Feature: BellaFontana® with Three Illuminated Arcs of Water


Lighting System - Interior: Customizable LED Zone Lighting


Lighting System - Exterior: Multi-Color LED Lighting with Timer


Polymeric Subtructure: Yes

Cover Lifters:
CoverCradle®
CoverCradle II
UpRite®
Lift ‘n Glide®


Steps: Highlife® Collection Step


Bluetooth® Music System: Yes


Subwoofer: Yes


CoolZone™ Cooling System: Yes


FreshWater® III Ozone System: Yes

No-Leak Shell: 7 Years


Shell Surface: 7 Years


Cabinet: 5 Years


No-Leak Plumbing: 5 Years


No-Fault® Heater: 5 Years


Component Warranty: 5 Years


Interior Light Assembly: 2 Years


Wireless Remote Control Battery: 1 Year

EXCLUSIVE WIRELESS REMOTE CONTROL

For added convenience all Highlife NXT models feature our unique wireless remote control with touchscreen technology.

The most advanced control panel available, it features a full color screen with large icons and intuitive menus that make it easy to adjust spa functions.

Remove the remote from the bartop charging dock and carry into the spa to adjust jets, lighting and even music from your favorite seat, then set the panel in the secondary bartop resting station while you relax.

ACCESSORIES

ENTERTAINMENT SYSTEMS

Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.

HOT TUB WATER CARE SYSTEMS

Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.

HOT TUB COVER LIFTERS

A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.

HOT SPRING SPA HOT TUB STEPS

Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
