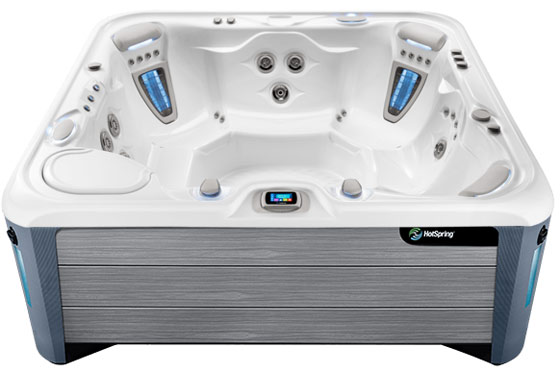

GRANDEE®
This large luxury spa seats 7 adults and features two corner seats, exclusive sweeping back massage jets and adjustable settings for the ideal relaxation experience.
People: 7 Adults
Seating: Open
Size: 8’4” x 7’7” x 38” | 254 cm x 231 cm x 97 cm
Voltage: 230 V
Water Care: FreshWater® Salt System Included
CABINET COLORS
SHELL COLORS
CABINET AND SHELL COLOR COMBINATIONS
(All Color Combinations Available for All Highlife Models.)
CABINET COLOR:
Blackwood
SHELL COLORS:
Alpine White
Ice Gray
Platinum
CABINET COLOR:
Brushed Nickle
SHELL COLORS:
Alpine White
Ice Gray
Platinum
CABINET COLOR:
Charcoal
SHELL COLORS:
Alpine White
Ice Gray
Pebble
Platinum
Tuscan Sun
CABINET COLOR:
Java
SHELL COLORS:
Alpine White
Ice Gray
Ivory
Pebble
Tuscan Sun
CABINET COLOR:
Linen
SHELL COLORS:
Alpine White
Ivory
Pebble
Tuscan Sun
GRANDEE
Cabinet: Blackwood
Shell: Alpine White
VANGUARD
Cabinet: Java
Shell: Pebble
SOVEREIGN
Cabinet: Charcoal
Shell: Alpine White
ENVOY
Cabinet: Brushed Nickel
Shell: Ice Gray
ARIA
Cabinet: Charcoal
Shell: Platinum
PRODIGY
Cabinet: Linen
Shell: Ivory
JETSETTER LX
Cabinet: Java
Shell: Tuscan Sun
JETSETTER
Cabinet: Brushed Nickel
Shell: Alpine White
GRANDEE MODEL SPECIFICATIONS
KEY SPECIFICATIONS
Total Seat: 7
Lounge Seat: X

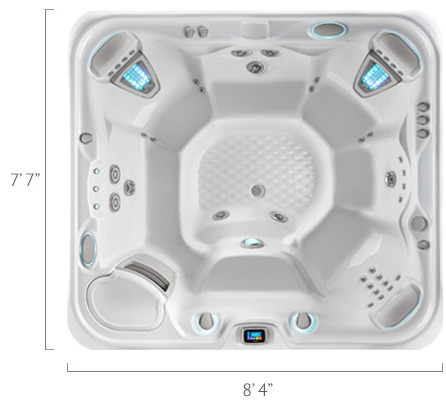

Dimensions: 8’4” x 7’7” x 38”/ 254 cm x 231 cm x 97 cm
Water Care System: FreshWater® Salt System Included
Smart Monitoring System: FreshWater® IQ System Ready
Voltage: 230 V
Water Capacity: 455 g, 1,725 L
Dry Weight: 790 lb., 360 kg
Filled Weight*: 5,810 lb., 2,645 kg
*Includes water and an adult weighing 175 lb. for every seat.
MASSAGE
Jet Count: 49
Jet Types
2 - Moto-Massage® DX
2 - SoothingStream®
2 - JetStream®
3 - Rotary Hydromassage
2 - Directional Hydromassage
10 - Hydrostream®
26 - Directional Precision®
Comfort Control®: ✔
SmartJet® System: ✔
Jet Pump 1
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 3: X
CLEAN WATER
Water Care System: FreshWater® Salt System Included
High-Flow Tri-X® Filters: ✔
Dual-Action Filtration: X
Polyester Filters with Free-Flow Core: X
Effective Filtration Area: 325 sq. ft.
100% No-Bypass Filtration: ✔
Circulation Pump: SilentFlo 5000®
Floor Drain: ✔
ENERGY EFFICIENCY
Insulation: Multiple Layers of Urethane Foam
Proprietary Heater: Titanium No-Fault® 4,000 W / 230 V
Patented Pump Shroud: X
Custom-Fit Insulated Cover: 3.5” to 2.5” Tapered, 2-Pound Density Foam Core with Hinge Seal
Bottom Seal: Insulated Polymeric Base Pan
Energy Standards: Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System:
IQ 2020® with Color LCD Touchscreen
230 V / 50 amp, 60 Hz
Includes G.F.C.I. Protected Subpanel
Diagnostic/Ready Light: ✔
DESIGN
Cabinet Colors:
Java
Charcoal
Blackwood
Linen
Brushed Nickel
Shell Colors:
Alpine White
Ice Gray
Ivory
Platinum
Pebble
Tuscan Sun
Cover Colors:
Vinyl: Nutmeg or Graphite
Polyester: Black or Gray
Water Feature: BellaFontana® with Three Illuminated Arcs of Water
Lighting System - Interior: Customizable LED Zone Lighting
Lighting System - Exterior: Multi-Color LED Lighting with Timer
Polymeric Subtructure: X
OPTIONAL ACCESSORIES
Cover Lifters:
CoverCradle®
CoverCradle II
UpRite®
Lift ‘n Glide®
Smart Spa Technology: ✓
Smart Monitoring System: ✓
Steps: Highlife® Collection Step
Bluetooth® Music System: ✓
Subwoofer: ✓
CoolZone™ Cooling System: ✓
FreshWater® III Ozone System: ✓
WARRANTY
No-Leak Shell: 7 Years
Shell Surface: 7 Years
Cabinet: 5 Years
No-Leak Plumbing: 5 Years
No-Fault® Heater: 5 Years
Component Warranty: 5 Years
Interior Light Assembly: 2 Years
Wireless Remote Control Battery: 1 Year
THE SMART WAY TO HOT TUB
Powered by the Connected Spa Kit, the Hot Spring Spas app allows you to control and monitor your spa any time, from virtually anywhere. Keep an eye on spa status, change key settings, manage installed accessories and set up customized alerts. And do it all conveniently from your mobile phone.
ACCESSORIES
ENTERTAINMENT SYSTEMS
Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.
HOT TUB WATER CARE SYSTEMS
Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.
HOT TUB COVER LIFTERS
A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.
HOT SPRING SPA HOT TUB STEPS
Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
