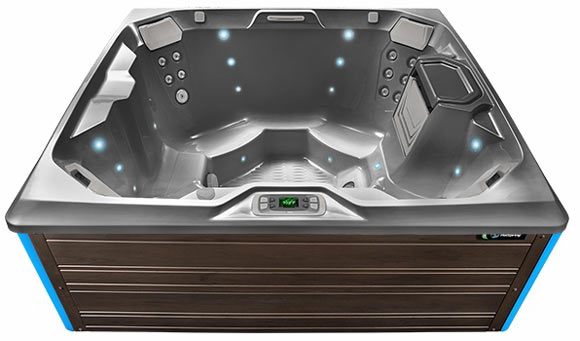

THE BEAM 4 PERSON HOT TUB

Where stunning lights meet powerful jets.

SOOTHING STYLE AND SPACE

All New For 2018

Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.

Seating:   4 Adults
Lounge Seat:   No

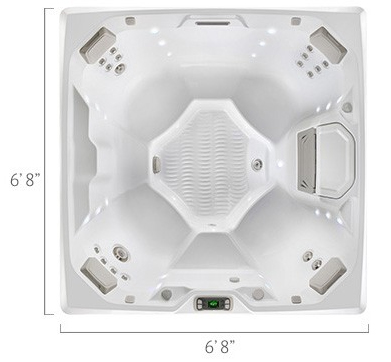

Size:   6’8″ x 6’8″ x 33”
2.03m x 2.03m x 0.84m

LIMELIGHT BEAM PRODUCT SPECS

Seating Capacity:

4 Adults

Dimensions:

6’ 8” x 6’ 8” x 33”
2.03m x 2.03m x 0.84m

Water Capacity:

310 gallons/1,175 liters

Weight:

700 lbs./320 kg
3,820 lbs./1,740 kg*

Jet Count:

19

Hot Tub Jets:

1 XL Directional Jet
2 Standard Single Rotary Jets
2 Standard Directional Jets
14 Directional Precision Jets

Lighting System:

Raio® multi-color points of light (30)
Exterior multi-color lighting with timer

Cabinet/Siding:

Shell:

Water Features:

Vidro® backlit ribbon waterfall

Control System:

IQ 2020® with LCD control panel
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel
or 115v/20amp, 60Hz
Includes G.F.C.I. protected power cord

Heater:

No-Fault®, 4000w/230v
or 1,500w/115v

Jet Pump 1:

Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
or Wavemaster® 7000
One-speed
1.65 HP, continuous duty
3.5 HP, breakdown torque

Circulation Pump:

SilentFlo 5000® for quiet continuous filtration

Water Care Options:

FreshWater® III Corona Discharge (Included)
ACE® Salt Water Sanitizing System (optional)
or EverFresh® System (optional)

Effective Filtration Area:

100 sq. ft., top-loading filters

Vinyl Cover:

3.5″ to 2.5″ tapered
2 lb. density foam core with hinge seal

Vinyl Cover Colors:

Caramel
Chestnut
Slate
Evergreen

Cover Lifters (Optional):

CoverCradle®, CoverCradle II®, Lift ‘n Glide®, UpRite®

Entertainment Systems (Optional):

Wireless Sound System

Steps (Optional):

Everwood®
Polymer

*Includes water and 4 adults each weighing 175 lbs. each
Export models available in 240v, 50Hz, 1500w heater

WIRELESS AUDIO SYSTEM

Stream music live or from your playlist, or listen to a podcast or audio book. There are so many ways to enjoy audio entertainment from your Bluetooth®-enabled device while relaxing in your spa. The optional Hot Spring® audio system connects devices from up to 150 feet. For added convenience, song and artist titles display in the easy-to-read spa control panel.

ACCESSORIES

ENTERTAINMENT SYSTEMS

Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.

HOT TUB WATER CARE SYSTEMS

Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.

HOT TUB COVER LIFTERS

A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.

HOT SPRING SPA HOT TUB STEPS

Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
