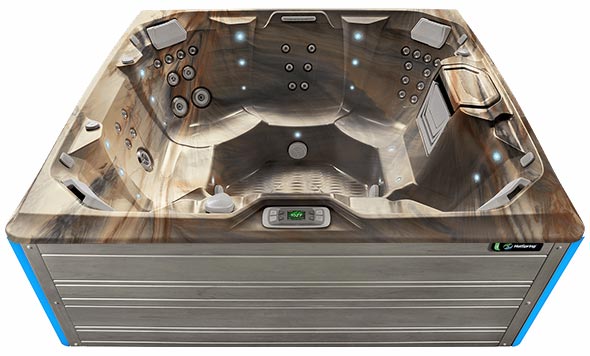

THE PULSE 7 PERSON HOT TUB

Lasting design and reliable performance.

SOOTHING STYLE AND SPACE

All New For 2018

The roomy interior seats up to seven adults in a spa that fits comfortably on most patios. It includes a jetted foot pod with seven precision directional jets for a penetrating foot massage from every seat.

Seating:    7 Adults
Lounge Seat:    No

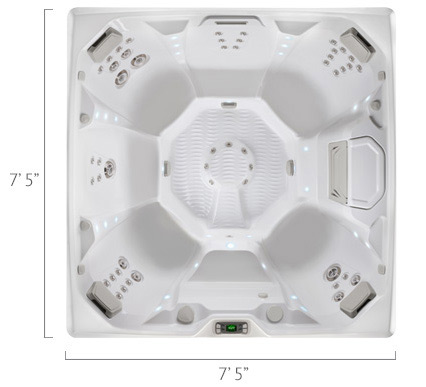

Size:    7’5″ x 7’5″ x 38”
2.26m x 2.26m x 0.97m

LIMELIGHT PULSE PRODUCT SPECS

Seating Capacity:

7 Adults

Dimensions:

7’5” x 7’5” x 38”
2.26m x 2.26m x .97m

Water Capacity:

445 gallons/1,685 liters

Weight:

1,015 lbs./460 kg dry
5,950 lbs./2,700 kg filled*

Jet Count:

49

Hot Tub Jets:

1 XL Dual Rotary Jet
1 XL Single Rotary Jet
2 XL Directional Jets
4 Standard Single Rotary Jets
2 Standard Directional Jets
4 Rotary Precision Jets
35 Directional Precision Jets

Lighting System:

Raio® multi-color points of light (32)
Exterior multi-color lighting with timer

Cabinet/Siding:

Shell:

Water Features:

Vidro® backlit ribbon waterfall

Control System:

IQ 2020® with LCD control panel
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel

Heater:

No-Fault®, 4000w/230v

Jet Pump 1:

Wavemaster® 9200
Two-speed
2.5 HP, continuous duty
5.2 HP, breakdown torque

Jet Pump 2:

Wavemaster® 9000
One-speed
2.5 HP, continuous duty
5.2 HP, breakdown torque

Circulation Pump:

SilentFlo 5000® for quiet continuous filtration

Effective Filtration Area:

65 sq. ft., top loading filters

Water Care Options:

FreshWater® III Corona Discharge (Included)
ACE® Salt Water Sanitizing System (optional)
or EverFresh® System (optional)

Vinyl Cover Colors:

Chestnut
Caramel
Evergreen
Slate

Vinyl Cover:

3.5″ to 2.5″ tapered
2 lb. density foam core with hinge seal

Cover Lifters (Optional):

CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®

Entertainment Systems (Optional):

Wireless Sound System

Steps (Optional):

Everwood®
Polymer

* Includes water and 7 adults weighing 175 lbs. each
Export models available in 240v, 50 Hz, 1500w Heater

WIRELESS AUDIO SYSTEM

Stream music live or from your playlist, or listen to a podcast or audio book. There are so many ways to enjoy audio entertainment from your Bluetooth®-enabled device while relaxing in your spa. The optional Hot Spring® audio system connects devices from up to 150 feet. For added convenience, song and artist titles display in the easy-to-read spa control panel.

ACCESSORIES

ENTERTAINMENT SYSTEMS

Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.

HOT TUB WATER CARE SYSTEMS

Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.

HOT TUB COVER LIFTERS

A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.

HOT SPRING SPA HOT TUB STEPS

Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
