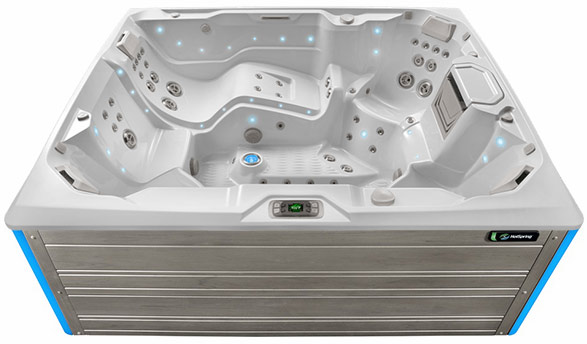

PRISM®
The extra large Prism is a premium seven-seat spa with a relaxing lounge seat and the JetStream® XL jet for an exceptional foot and leg massage.
People: 7 Adults
Seating: Lounge

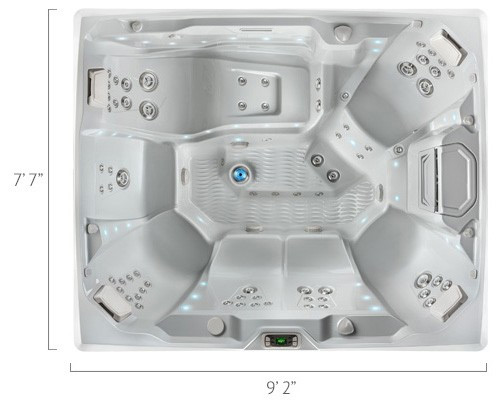

Size: 9’2” x 7’7” x 38” / 279 cm x 231 cm x 97 cm
Voltage: 230 V
Water Care: FreshWater™ Salt System Ready
CABINET COLORS
SHELL COLORS
CABINET AND SHELL COLOR COMBINATIONS
(All Color Combinations Available for All Limelight Collection Models.)
CABINET COLOR:
Coastal Gray
SHELL COLORS:
Alpine White
Ice Gray
Platinum
Tuscan Sun
Desert
CABINET COLOR:
Espresso
SHELL COLORS:
Alpine White
Ice Gray
Platinum
Tuscan Sun
Desert
CABINET COLOR:
Sable
SHELL COLORS:
Alpine White
Ice Gray
Platinum
Tuscan Sun
Desert
PRISM
Cabinet: Coastal Gray
Shell: Ice Gray
PULSE
Cabinet: Espresso
Shell: Alpine White
FLASH
Cabinet: Sable
Shell: Tuscan Sun
FLAIR
Cabinet: Coastal Gray
Shell: Platinum
BEAM
Cabinet: Sable
Shell: Desert
PRISM MODEL SPECIFICATIONS
MASSAGE
Jet Count: 73
Jet Types:
1 - JetStream® XL
1 - XL Dual Rotary
2 - XL Single Rotary
3 - XL Directional
7 - Standard Dual Rotary
4 - Standard Single Rotary
4 - Standard Directional
10 - Rotary Precision®
41 - Directional Precision®
Comfort Control®: ✔
SmartJet® System: ✔
Jet Pump 1:
Wavemaster® 9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 2:
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 3:
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
CLEAN WATER
100% No-Bypass Filtration: X
High-Flow Tri-X® Filters: X
Dual-Action Filtration: ✔
Polyester Filters with Free-Flow Core: X
Effective Filtration Area: 150 sq. ft.
Water Care System: FreshWater® Salt System Ready
Circulation Pump: SilentFlo 5000®
Floor Drain
ENERGY EFFICIENCY
Insulation: FiberCor®
Proprietary Heater: Titanium No-Fault® 4,000 W / 230 V
Patented Pump Shroud: X
Custom-Fit Insulated Cover: 3.5” to 2.5” Tapered, 2-Pound Density Foam Core with Hinge Seal
Bottom Seal: Polyethelyne Sealed Bottom
Energy Standards: Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System: IQ 2020® with Color LCD Control
230 V / 50 amp, 60 Hz
Includes G.F.C.I. Protected Subpanel
Diagnostic/Ready Light ✔
DESIGN
Cabinet Colors:
Coastal Gray
Sable
Espresso
Shell Colors:
Alpine White
Ice Gray
Platinum
Desert
Tuscan Sun
Cover Colors:
Slate
Caramel
Chestnut
Water Feature: Vidro® Backlit Ribbon Waterfall
Lighting System - Interior: Multi-Color LED Points of Light
Lighting System - Exterior: Multi-Color LED Lighting with Timer
Polymeric Substructure: X
OPTIONAL ACCESSORIES
Smart Spa Technology: ✔
Smart Monitoring System: ✔
Cover Lifters: CoverCradle® (Included with Spa) UpRite®
Steps: Limelight® Collection Step or Polymer Step
Bluetooth® Music System: ✔
Subwoofer: ✔
CoolZone™ Cooling System: ✔
FreshWater® III Ozone System: ✔
WARRANTY
No-Leak Shell: 7 Years
Shell Surface: 5 Years
Cabinet: 5 Years
No-Leak Plumbing: 5 Years
No-Fault® Heater: 5 Years
Component Warranty: 5 Years
Interior Light Assembly: 3 Years
Wireless Remote Control Battery: X
THE SMART WAY TO HOT TUB
Powered by the Connected Spa Kit, the Hot Spring Spas app allows you to control and monitor your spa any time, from virtually anywhere. Keep an eye on spa status, change key settings, manage installed accessories and set up customized alerts. And do it all conveniently from your mobile phone.
ACCESSORIES
ENTERTAINMENT SYSTEMS
Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.
HOT TUB WATER CARE SYSTEMS
Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.
HOT TUB COVER LIFTERS
A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.
HOT SPRING SPA HOT TUB STEPS
Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
