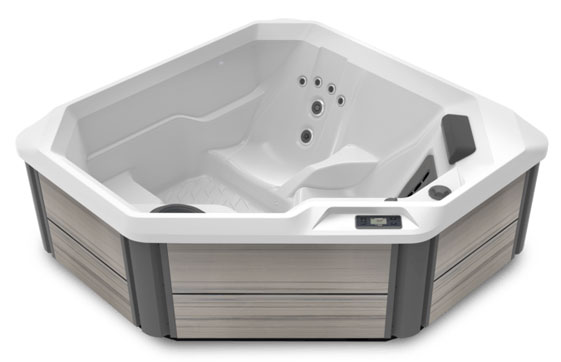

TX
With its unique shape, the TX provides comfort for two and fits in spaces other spas don’t. Our patented Moto-Massage® jet and adjustable precision jets recharge and invigorate you.
HOT SPOT TX PRODUCT SPECS
Voltage:
115 or 230
Seating:
Open
Seating Capacity:
2 Adults

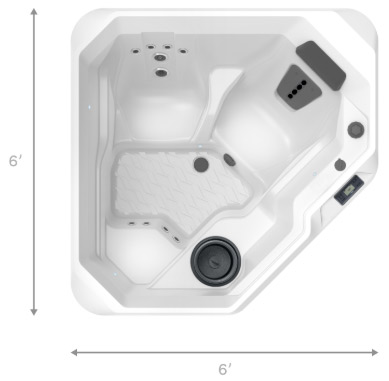

Dimensions:
6′ x 6′ x 29″
1.83m x 1.83m x .74m
Water Capacity:
190 gallons/720 liters
Weight:
635 lbs./290 kg dry
2,570 lbs./1,165 kg filled*
Jet Count:
11
Hot Tub Jets:
1 Directional Hydromassage jet
1 Moto-Massage® jet
1 Rotary Hydromassage jet
8 Directional Precision® jets
Lighting System (interior):
4 multi-color LED points of light, dimmable
Cabinet/Siding:

Shell:

Heater:
No-Fault®, 1000w/115v
or 4000w/230v
Energy Efficiency:
FiberCor® insulation; Certified to California Energy Commission (CEC) and APSP 14 energy efficiency standards for portable spas
Ozone System (Optional):
FreshWater® III Corona Discharge
Control System:
Q 2020®
115v/20amp**
Includes G.F.C.I. protected power cord
or 115v/30amp***
or 220v/50amp***, 60Hz
Effective Filtration Area:
30 sq. ft., top loading
Jet Pump 1:
Wavemaster® 4200
Two-speed
1.0 HP Continuous Duty
1.7 HP Breakdown Torque
Circulation Pump:
SilentFlo 5000®
Water Care Options:
FROG® In-Line Cartridge Ready
Vinyl Cover Colors:
Stone
Nutmeg
Vinyl Cover:
3.5″ to 2.5″ tapered
1.5 density foam core
Entertainment Systems (Optional):
Wireless Audio System with Bluetooth® Technology
Cover Lifters (Optional):
CoverCradle II®, CoverCradle II®, UpRite®
Steps (Optional):
Everwood® Step – Almond, Havana and Storm
Polymer – Ash
*Includes water and 2 adults weighing 175 lbs. each.
** G.F.C.I. protected sub-panel required in 30amp conversion or 220v mode.
Export models available in 230v, 50Hz, 1000w heater.

WIRELESS AUDIO SYSTEM

Stream music live or from your playlist, or listen to a podcast or audio book. There are so many ways to enjoy audio entertainment from your Bluetooth®-enabled device while relaxing in your spa. The optional Hot Spring® audio system connects devices from up to 150 feet. For added convenience, song and artist titles display in the easy-to-read spa control panel.
ACCESSORIES
ENTERTAINMENT SYSTEMS
Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.
HOT TUB WATER CARE SYSTEMS
Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.
HOT TUB COVER LIFTERS
A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.
HOT SPRING SPA HOT TUB STEPS
Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
