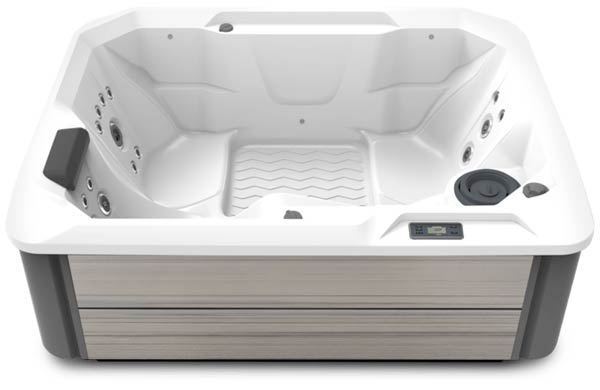

STRIDE®
The Stride is a value-priced spa with three seats and a design that’s meant for small spaces. A lounge seat and adjustable jets provide relaxation for less.
People: 3 Adults
Seating: Lounge

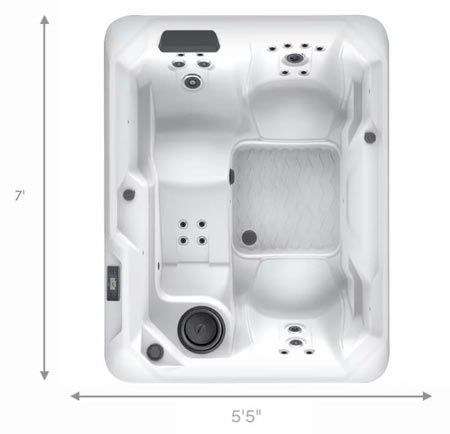

Size: 7’ x 5’5” x 29” | 213 cm x 165 cm x 74 cm
Voltage: 115 V or 230 V
Water Care: FROG® In-Line Cartridge Ready
CABINET COLORS
SHELL COLORS
CABINET AND SHELL COLOR COMBINATIONS
(All Color Combinations Available for All Limelight Collection Models.)
CABINET COLOR:
Almond
SHELL COLORS:
Alpine White
Pearl
Pebble
Tuscan Sun
CABINET COLOR:
Havana
SHELL COLORS:
Alpine White
Pearl
Pebble
Tuscan Sun
CABINET COLOR:
Storm
SHELL COLORS:
Alpine White
Pearl
Pebble
Tuscan Sun
STRIDE® MODEL SPECIFICATIONS
MASSAGE
Jet Count: 20
Jet Types:
1 - XL Directional Hydromassage
1 - XL Rotary Hydromassage
3 - Directional Hydromassage
1 - Rotary Hydromassage
14 - Directional Precision®
Comfort Control®: ✔
SmartJet® System: X
Jet Pump 1:
Wavemaster® 6200
Two-Speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
Jet Pump 2: X
Jet Pump 3: X
CLEAN WATER
100% No-Bypass Filtration: X
High-Flow Tri-X® Filters: X
Dual-Action Filtration: X
Polyester Filters with Free-Flow Core: ✔
Effective Filtration Area: 30 sq. ft.
Water Care System: FROG® In-Line Cartridge Ready
Circulation Pump: X
Floor Drain: ✔
ENERGY EFFICIENCY
Insulation: FiberCor®
Proprietary Heater: No-Fault® 1,000 W / 115 V or 4,000 W / 230 V
Patented Pump Shroud: X
Custom-Fit Insulated Cover: WeatherPro™ 4" Tapered Core with Hinge Seal
Bottom Seal: Polyethelyne Sealed Bottom
Energy Standards: Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
Control System:
IQ 2020® with LCD Control
115 V / 20 amp, 60 Hz
Includes G.F.C.I. Protected Power Cord
or 115 V / 30 amp, 60 Hz
or 230 V / 50 amp, 60 Hz
G.F.C.I. Protected Subpanel Required for 30 amp and 230 V Mode
Diagnostic/Ready Light: X
DESIGN
Cabinet Colors:
Almond
Havana
Storm
Shell Colors:
Alpine White
Pearl
Pebble
Tuscan Sun
Cover Colors:
Nutmeg
Stone
Water Feature: X
Lighting System - Interior: Multi-Color LED Points of Light
Lighting System - Exterior: Multi-Color LED Lighting with Timer
Polymeric Substructure: X
OPTIONAL ACCESSORIES
Smart Spa Technology: ✔
Smart Monitoring System: X
Cover Lifters:
CoverCradle®
CoverCradle II
UpRite®
Lift ‘n Glide®
Steps: Hot Spot® Collection Step or Polymer Step
Bluetooth® Music System: X
Subwoofer: X
CoolZone™ Cooling System: X
FreshWater® III Ozone System: ✔
WARRANTY
No-Leak Shell: 5 Years
Shell Surface: 2 Years
Cabinet: 2 Years
No-Leak Plumbing: 2 Years
No-Fault® Heater: 2 Years
Component Warranty: 2 Years
Interior Light Assembly: 2 Years
RHYTHM
Cabinet: Havana
Shell: Pearl
RELAY
Cabinet: Almond
Shell: Alpine White
PACE
Cabinet: Storm
Shell: Alpine White
STRIDE
Cabinet: Havana
Shell: Pebble
SX
Cabinet: Almond
Shell: Tuscan Sun
TX
Cabinet: Storm
Shell: Pearl
THE SMART WAY TO HOT TUB
Powered by the Connected Spa Kit, the Hot Spring Spas app allows you to control and monitor your spa any time, from virtually anywhere. Keep an eye on spa status, change key settings, manage installed accessories and set up customized alerts. And do it all conveniently from your mobile phone.
ACCESSORIES
ENTERTAINMENT SYSTEMS
Stream music live or from your playlist, or listen to a podcast or audio book. Enjoy audio entertainment from your Bluetooth® device while relaxing in your spa.
HOT TUB WATER CARE SYSTEMS
Hot Spring offers three easy-to-use water care systems to choose from, and a complete line of customized water care products to meet all your ownership needs.
HOT TUB COVER LIFTERS
A hot tub cover lifter makes it quick and easy to lift your hot tub cover off and on. Without a hot tub cover lifter, opening and closing your spa can be a 2-person job.
HOT SPRING SPA HOT TUB STEPS
Making it easy to climb in and out of your spa, Hot Spring spa side stairs feature rich colors and a natural wood appearance to match your spa cabinet.
